How to Replace an Electric Lawn Mower Fuse Step by Step Safely

The first warm Saturday arrives and the lawn looks ready, yet your electric mower refuses to start. The lights blink for a moment, then everything goes silent and still.

You check the battery, the handle safety, and the charger, but nothing changes. What often hides behind this moment is a tiny part with a big job.

That part is the fuse, a simple link that sacrifices itself to protect the motor and wiring. When current spikes or a short appears, the fuse opens the circuit and stops damage.

A blown fuse can feel like a major breakdown even though the repair is small. With the right steps, you can diagnose, replace, and safely power up again in minutes.

This guide turns confusion into a calm, methodical process you can trust. You will learn where manufacturers hide fuses, how to test them, and which rating to buy.

We will also look at why fuses blow so you fix the cause and not just the symptom. Packed wet clippings, dull blades, or nicked wires can trigger repeat failures.

You will set up a small work area, gather simple tools, and open the correct cover. Clear photos or notes on wire routing will make reassembly smooth and accurate.

Once the new fuse is in place, you will perform a safe first start in open space. Short bursts without load confirm that everything is healthy before the next cut.

By the end, replacing a mower fuse will feel like changing a light bulb. You will restore reliability, protect your investment, and get back to a clean, even lawn.

Understand What the Fuse Does and Why It Blows

A fuse is a sacrificial safety device that opens the circuit when current rises above a safe level. It protects the motor, wiring, and battery or mains connections from damage.

When a fuse blows, it prevents heat, arcing, and melted insulation. It also signals that something downstream may have drawn too much current.

Common causes include wet clippings packed around the blade and deck. Binding loads raise current and can pop the fuse during a stall.

Damaged extension cords and loose terminals also raise resistance. Extra resistance makes parts run hot and stresses protective devices.

Shorts from nicked wires, crushed harnesses, and failed switches are frequent culprits. Vibration and moisture can expose conductors and create intermittent faults.

Before you drop in a new fuse, you need to confirm why the original opened. Replacing without diagnosis risks another failure during the next mow.

Safety First Before You Touch the Mower

Disconnect power completely before any work begins. Remove the battery on cordless units or unplug the cord on corded models.

Press the start lever to discharge any stored energy. You should see no lights or indicators after a few seconds.

Allow a hot deck to cool to room temperature. Heat softens plastics and makes clips easier to damage.

Wear cut resistant gloves and safety glasses during inspection. Sharp edges and hidden burrs are common near the deck and blade area.

Do not tip the mower in a way that floods electronics. Follow the orientation in the manual so fluids and debris do not enter housings.

Work on a clean bench or mat with good lighting. Organized space prevents lost screws and accidental shorts.

Gather the Right Tools and Replacement Parts

You will need a basic screwdriver set with flat and Phillips tips. Some models use Torx heads, so keep a small Torx kit nearby.

A digital multimeter with continuity and resistance is essential. It lets you confirm whether the fuse is open or intact in seconds.

Needle nose pliers or a fuse puller help remove small parts safely. Plastic bodies can crack if you pry with the wrong tool.

Have replacement fuses that match amperage and type exactly. The rating is printed on the metal caps or on the body of the fuse.

Keep contact cleaner, cotton swabs, and a soft brush on hand. Clean terminals reduce resistance and heat after the repair.

A phone camera helps record wire routing and screw locations. Photos make reassembly faster and more accurate later.

Identify the Fuse Location on Your Mower

Battery mowers often place the main fuse near the battery bay. Look for a small holder with push in caps or a clip in cartridge.

Some models hide an inline fuse inside a wire loom. Trace the positive lead from the pack to find a small cylindrical holder.

Corded mowers may use a fuse near the control handle or switch box. Follow the cord entry to a small enclosure with two screws.

If the mower has a controller module, a mini blade fuse can sit on the board. You might need to remove a cover to reveal the slot.

Spare fuses sometimes live in a small cavity beside the main holder. Check for a blank spot marked spare or a clip next to the active fuse.

If you cannot find the part, search the model label for a schematic. The layout diagram often lists the fuse symbol and exact position.

Know the Common Fuse Types and Ratings

Glass cartridge fuses are clear cylinders with metal end caps. They are easy to identify because you can see the internal filament.

Ceramic cartridge fuses look similar but have opaque bodies. These handle higher interrupt ratings and resist shattering under fault.

Mini blade fuses are small plastic pieces with two flat prongs. Colors indicate amperage, and ratings are molded on the top.

Some mowers use resettable polymer fuses in accessory lines. These protect against mild overloads and recover after cooling.

Always match the amperage value stamped on the blown fuse. Substituting a higher value defeats protection and invites damage.

If the part lists a slow blow or time delay rating, keep that feature. Motors draw higher current at startup, so the delay prevents nuisance trips.

Test the Suspect Fuse With a Multimeter

Remove the fuse from the holder before testing. Testing in circuit can produce false readings through parallel paths.

Set the meter to continuity or the lowest resistance setting. Touch one probe to each end of the fuse and watch the display.

A good fuse shows near zero ohms or a tone on continuity. An open fuse shows infinite resistance and no tone at all.

If the reading flickers while you wiggle the body, the filament is fractured. Replace the fuse even if it sometimes reads closed.

Inspect the holder for discoloration or melted plastic. Heat marks suggest poor contact pressure or a loose crimp in the line.

Clean light corrosion with contact cleaner and a cotton swab. Let the parts dry fully before you insert the replacement.

Inspect for Root Causes Before Installing a New Fuse

Spin the blade by hand to confirm it turns freely. Any grinding or binding indicates debris, bent metal, or a failing bearing.

Check the deck for packed wet clippings around baffles and chute. Heavy buildup raises load and creates hard starts that blow protection.

Follow the harness from the handle to the controller. Look for crushed insulation, exposed copper, or pinched runs under clamps.

Open switch housings if you smell burnt plastic. Switch arcing can weld contacts and create shorts under the trigger.

Examine the battery contacts on cordless models. Burn marks or loose spring pins add resistance and heat under load.

Repair or clean any fault you discover before replacing the fuse. A new fuse will fail again if the cause remains in the circuit.

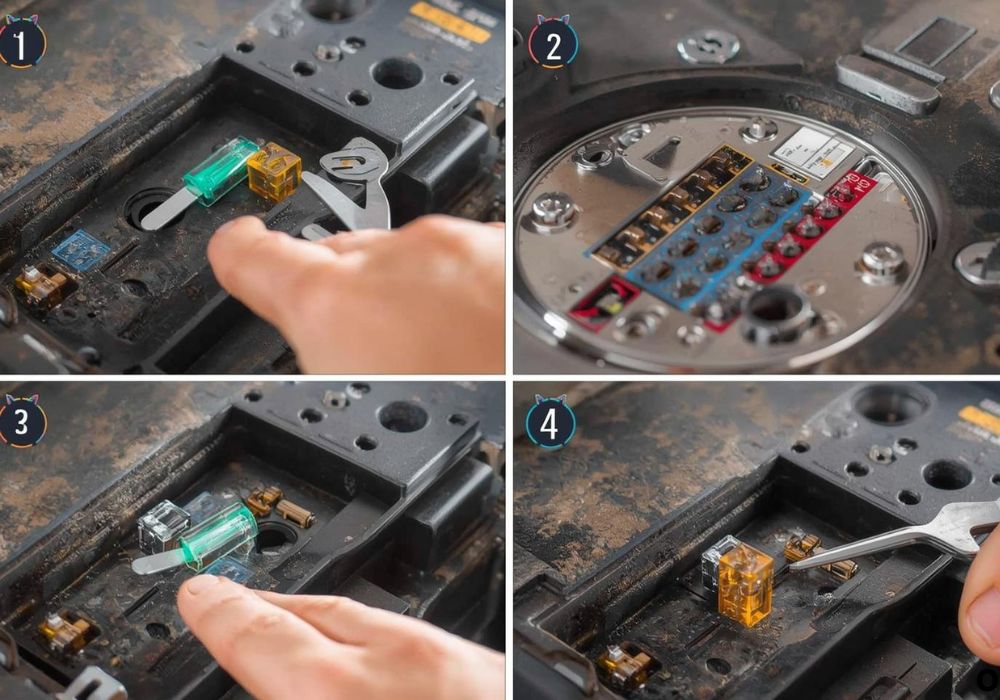

Replace the Fuse the Right Way

Confirm the amps, voltage, and time delay rating on the new fuse. Line up the replacement beside the old part to verify size and style.

Seat the fuse straight into the holder without twisting. Twisting can stress end caps and crack glass on cartridge styles.

For blade fuses, press firmly until both prongs bottom out. Half seated blades arc under load and heat the plastic body.

Tighten any cap or cover by hand until snug. Over tightening cracks housings and can warp contact alignment later.

Reassemble any access panels and route wires in the original paths. Avoid sharp bends that strain insulation near terminals.

Return the battery or plug to the mower only after everything is closed. You should see no exposed metal or loose pieces anywhere.

Perform a Safe First Power Up After Replacement

Place the mower on a flat, clear area for testing. Keep hands and tools away from the blade zone during the first start.

Reconnect the battery or plug into a grounded outlet. Watch for any unusual lights, smells, or sounds as power returns.

Hold the safety lever and start the mower for a short burst. Start and stop twice to confirm consistent behavior without load.

If the fuse holds during the short tests, raise the deck to maximum. Make a brief no load run that brings the motor up to speed.

Lower the deck to normal height and cut a small patch of grass. Listen for smooth tone and watch the cable and harness for movement.

Stop the mower and recheck the fuse area for heat. Warm is acceptable, but hot plastic or a sharp smell requires immediate inspection.

Prevent the Next Fuse Failure With Smart Habits

Keep the deck clean so the blade can spin freely. Less resistance means lower current and less stress on protection.

Sharpen and balance the blade at regular intervals. A sharp edge cuts cleanly and avoids sudden stalls in dense growth.

Use dry mowing windows whenever possible. Wet grass sticks to the deck and raises starting loads that stress fuses.

Inspect cords and plugs on corded models before each session. Replace damaged cords and avoid tight coils that trap heat.

Secure harnesses along the handle with proper clips. Loose wires flex and rub on sharp edges during turns and pivots.

Do not overspec fuses to stop nuisance trips. Find and fix the cause rather than raising the protection threshold beyond safe limits.

Simple Troubleshooting if the New Fuse Pops Again

If the new fuse blows at idle, suspect a short in the primary circuit. Isolate the switch box and test continuity to ground on the positive line.

If the fuse blows only under load, suspect binding or a worn bearing. Remove the belt or blade and run the motor alone for a short test.

If it blows after a few minutes, look for heat related faults. Thermal expansion can expose a marginal crimp or cracked solder joint.

Try a different extension cord on corded mowers. Undersized cords drop voltage and make motors pull higher current to keep speed.

Swap to a known good battery on cordless units. A failing pack can sag and make the controller overshoot current.

When faults persist after basic checks, consult a service center. Intermittent shorts inside sealed modules require specialized tools.

Maintenance Schedule for Electrical Health

Monthly checks should include a visual scan of the harness. Look for chafing, loose clips, and stress at each bend.

Clean and dry the deck after every cut. Quick routines prevent heavy buildup that strains the motor.

Quarterly, open major covers and blow out dust with low pressure. Keep debris away from controller fins and wire connectors.

Twice per season, test the fuse holder for solid contact. Weak springs create heat and encourage premature failures.

At the end of the season, document any repairs you made. Notes help you spot patterns and order spares before spring.

Store batteries cool and dry at mid charge if the mower will sit. Healthy packs deliver cleaner current and reduce nuisance blows next year.

Parts Sourcing and Choosing Quality Replacements

Buy fuses from reputable electrical suppliers or the mower brand. Unknown parts can have poor melt curves and unreliable ratings.

Order a small kit of the exact rating and style. Keeping spares reduces downtime and temptation to substitute values.

Replace worn holders that feel loose after insertion. Strong contact pressure matters as much as a good fuse element.

Inspect labels for the correct interrupt rating on mains models. High interrupt capability is important for household line faults.

Consider dielectric grease on connector shells and not on contacts. Grease on metal faces can raise resistance instead of helping.

Keep the old blown fuse in a small bag with the date. Evidence of multiple failures aids future troubleshooting quickly.

Wiring Care and Strain Relief During Reassembly

Route wires along factory channels with original clips. Correct paths keep harnesses away from sharp brackets and moving parts.

Use fabric harness tape or spiral wrap where the loom rubs. Protective sleeves prevent new insulation damage over time.

Leave a gentle service loop near the fuse holder. A little slack avoids tension on caps and keeps contact alignment true.

Check that grommets sit correctly in panel cutouts. A missing grommet turns a smooth hole into a sharp edge very quickly.

Secure the handle switch cable with two or three ties. Even spacing keeps it from pinching during folding and storage.

Cycle the handle through its motion while watching the loom. If the jacket stretches or twists, reroute before finishing.

Environmental Factors That Affect Fuse Life

High ambient temperatures raise resistance in wiring. Hot days push everything closer to the protective threshold.

Dust and moisture inside housings create leakage paths. Current can track across dirty plastics and surprise you under load.

Cold starts increase viscosity of lubricants and friction. Expect higher current spikes when parts are stiff in early spring.

Altitude reduces air density and cooling for motors. Controllers may draw more current to hold speed in thin air.

Frequent stop and start mowing during trim work is hard on fuses. Each start draws a higher surge than steady running in a lane.

Design your routine to keep the blade spinning through reasonable lanes. Smooth operations reduce the number of high current events per session.

Signs You May Need Professional Service

Repeated fuses blowing with no obvious cause is a red flag. Sealed controller faults and motor windings require bench equipment.

Acrid smells or visible smoke mean immediate shutdown. Continuing to test risks insulation failure and arc damage.

Cracked boards or scorched components suggest a hard short. Parts replacement is safer than attempting patch repairs at home.

Loose magnets in brushless motors create irregular loads. Specialized fixtures are needed to diagnose these problems correctly.

Water intrusion inside the main controller calls for replacement. Drying seldom restores long term reliability after a deep soak.

When in doubt, protect your warranty and call the brand service line. Document symptoms and steps taken so the technician can move fast.

Quick Questions People Ask About Fuse Replacement

How do I know my mower fuse is blown and not the switch
Test the fuse out of circuit with a meter for continuity. A blown fuse reads open while a bad switch reads open only when it should be closed.

Can I visually inspect a glass fuse without a meter
You can sometimes see a broken filament or blackening. Always confirm with a meter because hairline fractures may not be obvious.

What does time delay mean on a mower fuse
Time delay allows brief startup surges without opening. Motors draw more current during spin up and need a short grace period.

Is it safe to use a higher amp fuse to prevent trips
No, a higher rating removes protection and risks fire. Always match the exact amperage and type specified by the manufacturer.

Where can I find the fuse rating for my model
Check the old fuse body, the battery bay label, or the manual. Parts diagrams and controller covers often list the correct value.

Why does the replacement fuse get warm during mowing
Mild warmth is normal under load in a tight holder. Hot plastic or a burning odor means poor contact or excessive current draw.

Do cordless and corded mowers use the same fuse types
They often use different forms and ratings based on design. Always identify the holder style and the label before buying parts.

What if the fuse blows only when grass is very tall
Heavy load and stalls push current above safe limits. Clean the deck, sharpen the blade, and raise the height for the first pass.

Can I bypass the fuse temporarily to finish mowing
Bypassing defeats critical safety protection and is unsafe. Fix the root cause and replace the fuse correctly before using the mower.

Should I carry spare fuses when mowing a large yard
Yes, keep two or three exact match spares in a small bag. Quick replacement reduces downtime and avoids risky substitutions.

Conclusion

Replacing an electric mower fuse is a straightforward task when you work methodically. Safety, correct identification, and careful testing make the process smooth.

Match the amperage and type, clean the holder, and inspect for root causes. A clean deck, sharp blade, and sound wiring protect the new fuse during heavy work.

Start up gently after the repair and listen for a steady tone. If the fuse stays cool and the cut looks clean, your fix is complete.

If a fresh fuse fails again, pause and step back into diagnostics. Persistent blows point to wiring damage, controller faults, or mechanical binding.

Build a short maintenance routine that keeps load and heat under control. With smart habits, your mower runs reliably and your fuses last the entire season.
